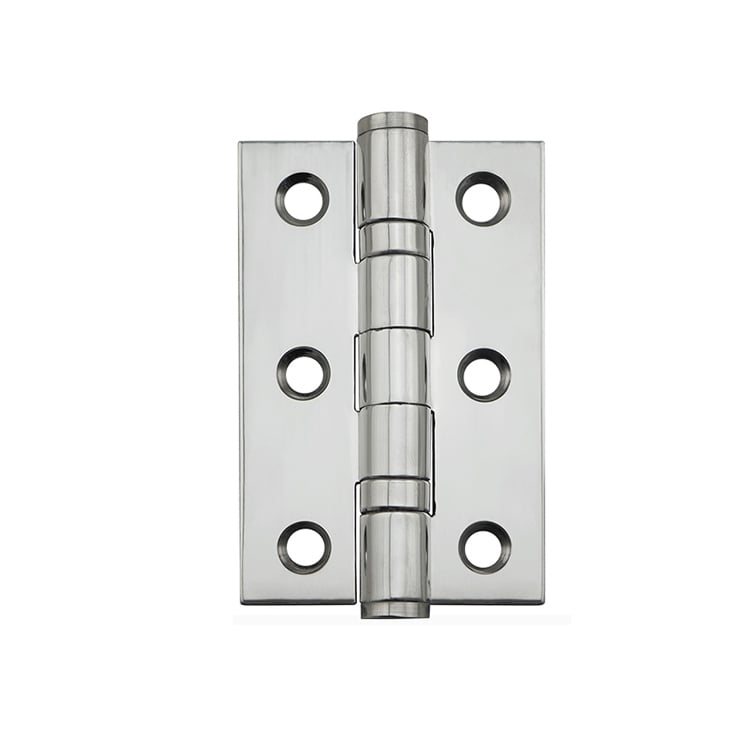

HB302020 ball bearing mortice door hinge-01

Stainless steel 3 - x 2 - x2mm ball bearing mortice door hinge

Specification

Model No.HB302020
MaterialAISI304(AISI316)
Size3 - x 3 - x 2mm
Thickness2mm
FinishUS32D,US32,Satin PVD, Bright PVD
Corner TypeSquare corner, or radius
Installation MethodScrew fixings
Ball BearingYes


>> Get Complete Door Hinge Catalog

Product Detail

Stainless ball bearing mortice door hinge HB302020 is manufactured to engineering standards to provide high performance.

Stainless steel 3 - x 2 - x2mm ball bearing mortice door hinge

Specifications and Features

- AISI304 stainless steel material for high corrosion resistance (AISI316 material available)
- Hardened Ball Bearings
- Square and radius corner version available
- Template drilled for easy installation and retrofitting purpose
- Designed for metal or timber fire rate door set
- Dogbolt version optional for enhanced security
- Stainless ball bearing mortice hinge HB302020 is suitable for a wide range of door thickness/weight
- Supplied with CSK stainless steel screws



Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request
