Door Handle/

U- Shape Handicap Door Handle For Hospital & Healthcare Facilities

Model No.SR02SL900
MaterialStainless Steel AISI304
Rose Diameter53mm

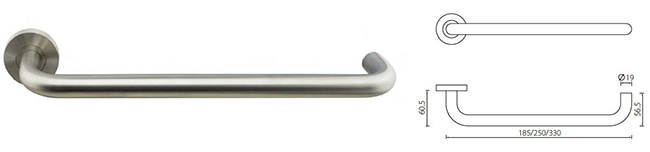

Lever Length185/250/330mm
Projection60.5mm
FinishSatin, Polished, PVD Titanium, or custom
ApplicationFor hospital and healthcare facilities
StandardEN1634, EN1906
Fire Test240minuts/4Hours



>> Get Complete Door Handle Catalog

Print It
  • Product Detail
  • Tests and Standards
  • Certificates

SR02 series U- Shape handicap door handle is designed for hospitals and healthcare facilities to assist ease of door opening.

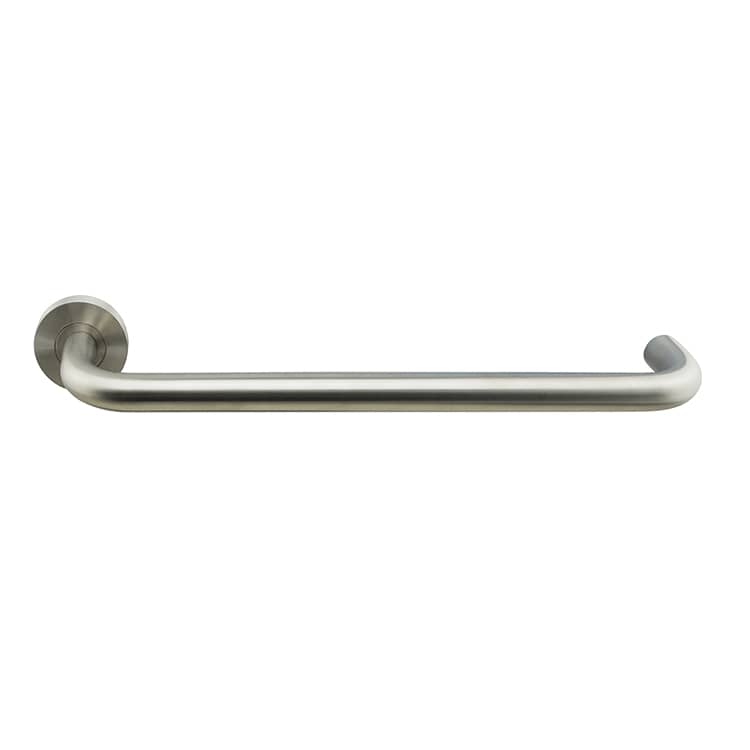

U Shape Handicap Door Handle For Hospital & Healthcare Facilities SR02SL900



Specifications and Features

- SR02SL900 series handicap door handle is made of stainless steel AISI304, and AISI316 is available on request.
- Rose design suitable for most of the European mortice lock.
- U-shape return to door lever design applicable to commercial usage.
- Concealed screw fixing.
- Hexagonal countersunk and fixing lugs to assist thru-bolt fixing.
- Robust spring mechanism to assist lever torque force.
- Strong under-construction build to protect the mortice lock in the application.
- Available in 185 / 250 / 330mm length version.
- Standard Finish in Satin Stainless Steel (Other finish available on request).



Available Models

SR02SL901: 185mm length version
SR02SL902: 250mm length version
SR02SL903: 330mm length version

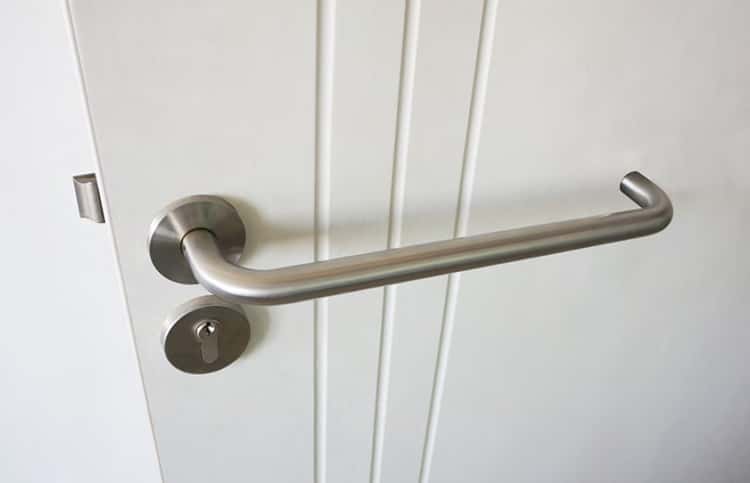

U-Shape Handicap Door Handle SR02SL900 Application



Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request.

Available finishes of Entry Door Handle Lever Set SR01 En1906 Grade 4



Door handle's type test to EN1906Successfully type-tested for conformity to all of the requirements of EN1906: 2010

(including 240-hours of corrosion resistance requirement of EN 1670:2007)

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 2EN1906 Grade 4 tested fire door handle leverhas successfully passed 240-minutes fire

test of metal door assemblies to EN 1634-1: 2014

Entry Door Handle Lever Set SR01 En1906 Grade 4 - ICON 3All tests performed independently and certified by Exova/Warringtonfire/Warrington APT.

Test reports and/or certificates are available upon request

EN1906:2010 Classifications

37 - /td>1140B
