Door Lock/

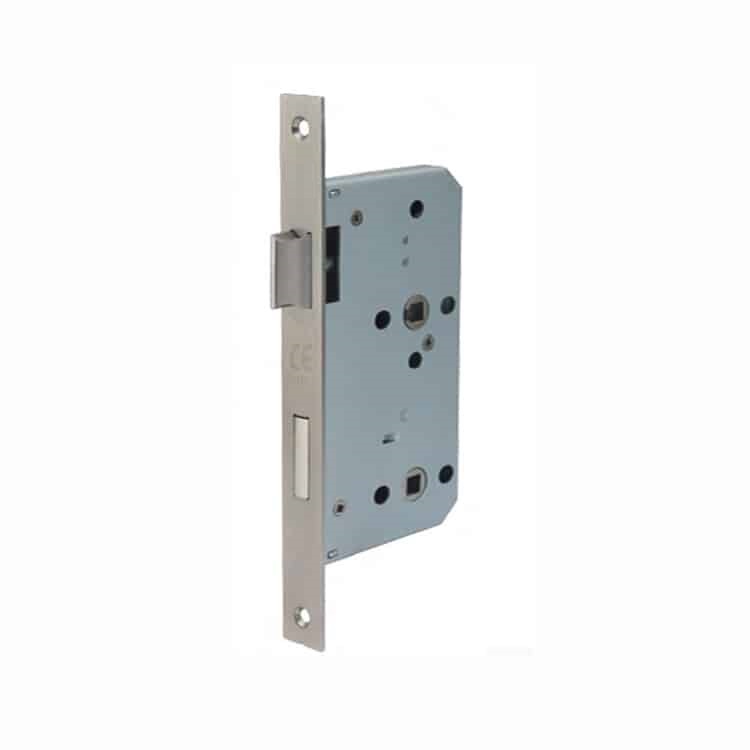

ML107205 bathroom mortice lock for privacy

Model No.ML107205
Finish(Forend/Strike)Satin
Centers72mm
Backset Size50/55/60/65mm
Case Size(L*W*H)165*79*20mm
Forend/Plate Size209*20(24)mm
FunctionBathroom/Privacy
Emergency UnlockAvailable
Standard/CertificateEN12209:2003
Fire CertificateCertifire CF5333
Fire Test240minutes



>> Get Complete Mortice Lock Catalog

Print It
  • Product Detail
  • Tests and Standards

HUACI ML107205 bathroom mortice lock is suitable for the bathroom door with deadbolt locking privacy. What is more, emergency unlocking is provided by the coin release slot.

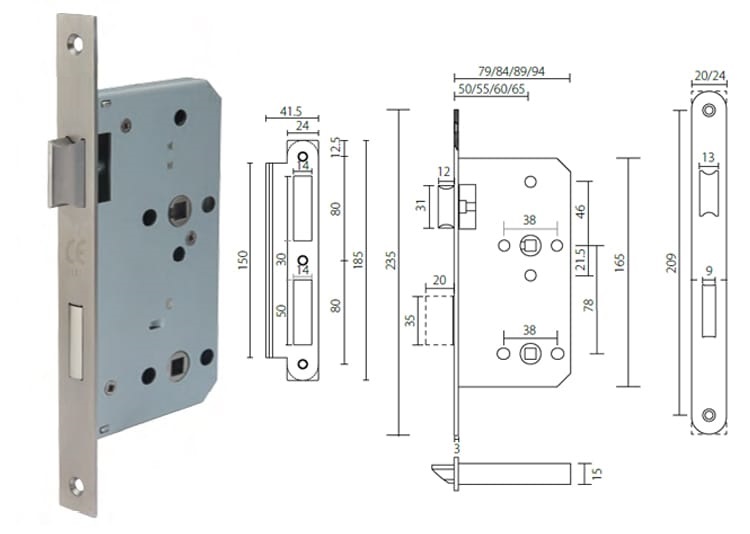

ML107205 bathroom mortice lock with deadbolt locking privacy

Specifications and Features

- ML107205 bathroom mortice lock has a modular case across functions for rapid door prepping and installation
- 72mm centers, backset in 50/55/60/65mm
- 8mm follower with spindle gripping function
- ML107205 bathroom privacy lockset has a reversible latch bolt in solid stainless steel
- Double throw deadbolt in solid stainless steel with 20mm projection
- Suitable for sprung and most un-sprung lever furniture
- Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
- Compatible with bolt through furniture and escutcheons of 38mm centers

EN12209:2003 Classification

3X810G3BC20

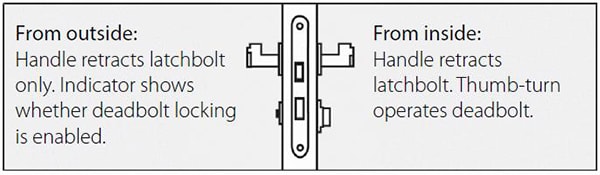

Illustration

ML107205 bathroom mortice lock-illustration

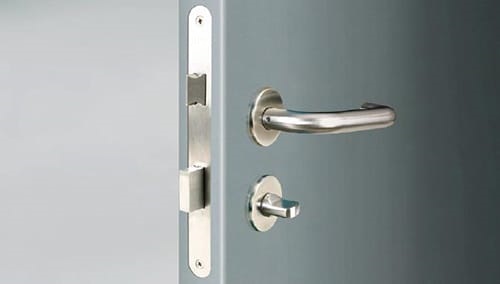

ML107205bathroom mortice lock for privacy - application

Forend and Strike Finishes

107201 Entry Door Sashlock - Forend and Strike Finishes

Satin

The matching finish on latch bolt and deadbolt
*Other finishes available upon request

Trim Options:

ML1072 door mortise lock -Trim option

Lever Options

Suitable with any HUACI lever design

* Please refer to HUACI Lever Handle catalog for more detail on Lever and Trim options




About HUACI Door Mortice Locks
HUACI manufacture and supply a comprehensive range of mortise lock, mortice latch, and related door lock hardware designed and made in China. The door lock items cover from mortise locks and latches, tubular latch locks, magnetic door locks, narrow mortice locks, to compact mortice locks, and lever mortice locks.

>> Full Catalog Download
>> Quick Inquiry and Quote



EN12209 for door mortise lockSuccessfully type-tested for conformity to all of the requirement of EN12209: 2003
HUACI Door mortise lock with 240 minutes fire test to EN1634-1Successfully passed and exceeded the 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
CE for door mortise lockCE Declaration of Conformity available upon request
BS8300 iconMeets the dimensional recommendations of BS8300 and Approved Document “M
Certifire CF5333 for HUACI Door mortise lockHUACI ML1072 series locks are approved by Certifire.* Certifire No. CF5333
EN CE Certifire tests by Exova Warringtonfire Warrington APTAll EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test reports/certificates are available upon request.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products
