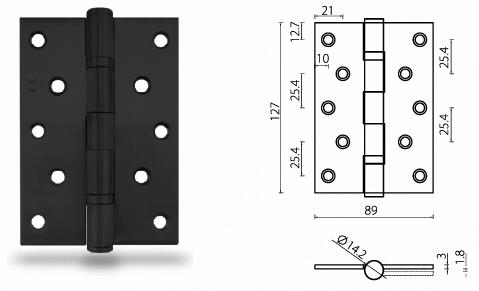

CE marked ball bearing fire door hinge black,5 - x 3.5 - x 3mm

Model No.HB503530-BK
MaterialAISI304(AISI316)
Size5 - x 3.5 - x 3mm
Thickness3mm
FinishMatte black, or custom
Corner TypeSquare corner
Installation MethodScrew fixings
Max Door Weight120KG
Ball BearingYes
Fire TestYes
CertificateCertifire, EN1935, EN1634, CE, etc.

Print It
  • Product Detail
  • Tests and Standards

HUACI ball bearing fire door hinge black HB503530-BK comes in the size of 5 - x 3.5 - x 3mm; And it is suitable for a wide range of door thickness/weight(up to 120kg).

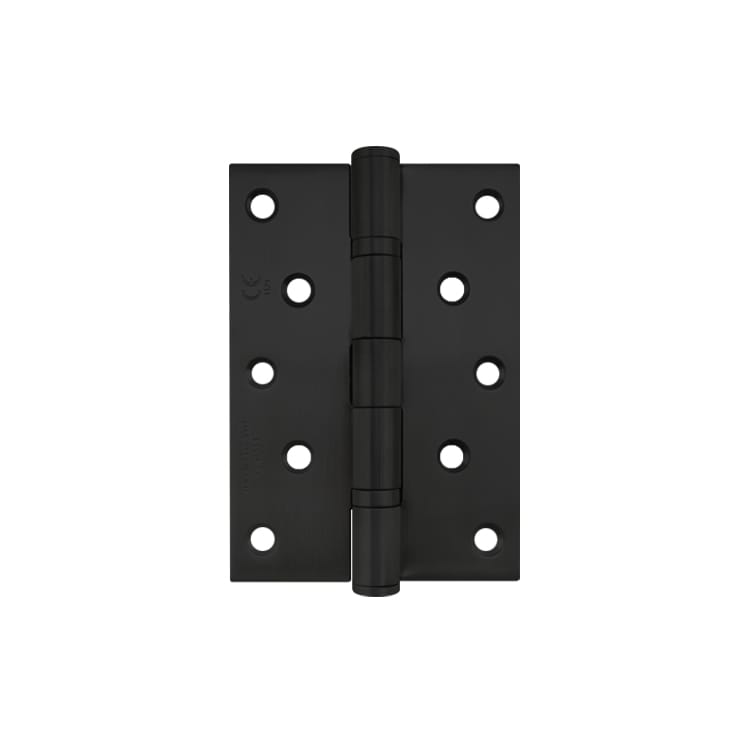

HUACI HB503530-BK CE marked fire door hinge black

Specifications and Features

- AISI304 stainless steel material for high corrosion resistance (AISI316 material available)
- Hardened Ball Bearings
- Square and radius corner version available
- Template drilled for easy installation and retrofitting purpose
- Designed for metal or timber fire rate door set
- Dogbolt version optional for enhanced security
- HUACI HB503530-BK fire door hinge black is suitable for a wide range of door thickness/weight (up to 120kg)
- Supplied with CSK stainless steel screws



EN1935:2002 Classifications

Standard Hinges

4761*14013

Dogbolt Hinges

4761*14013

*Provided they are fitted in accordance with the guidelines detailed in IFCA/06252.



Finishes

- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium

*Other finishes available on request




HUACI Mortice Door Hinge

HUACI offers a standard range of hinges as well as the capability to produce hinges to the customer’s specifications.
For the standards and tests, HUACI’s stainless steel butt hinges have been tested to EN1935: 2002 (Grade 13/Grade 10) and also fire rated to EN1634-1.

>>Full Catalog Download
>>Quick Inquiry and Quote

Successfully type-tested for conformity to all requirements of EN1935: 2002
Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
CE Declaration of Conformity available upon request
HUACI HB series hinges are approved by Certifire.* Certifire No. CF735
Successfully passed 180-minutes fire test of fire-resistant door and frame to UBC 7-2 (1997): NFPA252 (2008): UL 10 (b) Revision 1 (2009): UL 10 (c) (2009: CAN/ULC S104 (2010): NFPA 252 (2012),Certificate No. WH13-18485801
All EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate available upon request.
All UL/UBC/NFPA tests performed independently and certified byIntertek Testing Services NA, Inc.
* Certifire is an independent third party certification scheme that assures performance, quality, and traceability of fire protection products.
