Door Hinge/

HLL8080 series square lift off butt hinge with 2.5/3.5mm thickness

Model No.HLL808025 / HLL808035
MaterialAluminum alloy
Size80mm*80mm
Thickness2.5mm / 3.5mm
Corner TypeSquare corner
Installation MethodScrew fixings


>> Get Complete Door Hinge Catalog

Print It
  • Product Detail

HUACI HLL8080 series square lift off butt hinge made of aluminum alloy is designed for residential interior wood door use. The hinge pin is permanently attached to the frame leaf, you can quickly and easily lift the door and make it installed or dismantled.

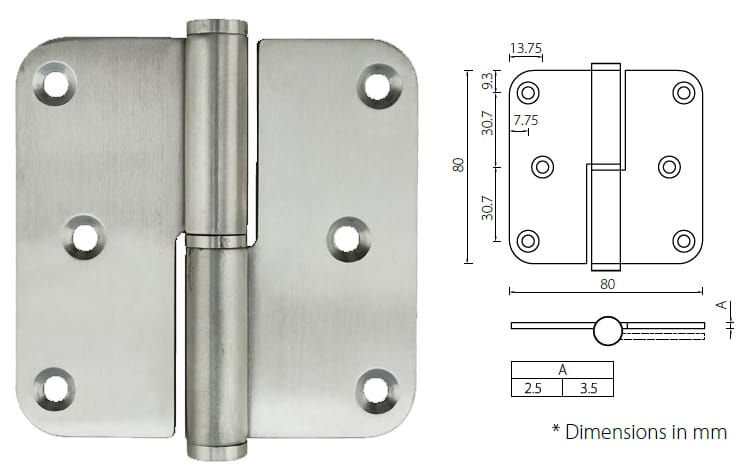

HLL8080 series square lift off butt hinge-2

Item No.L(mm)W(mm)Thickness(mm)Door Mass(kg)
HLL80802580802.540
HLL80803580803.560

Standard Finish: Satin Stainless Steel



Specifications and Features,
- Material: Aluminum alloy
- Size: 80mm*80mm*3.5mm
- Application: Residential interior wood door
- Finish: Silver (F1) /White (power coating)
- Rust resistant and durable
- Light weight with clean design
